DATD AUTO TIP DRESSER

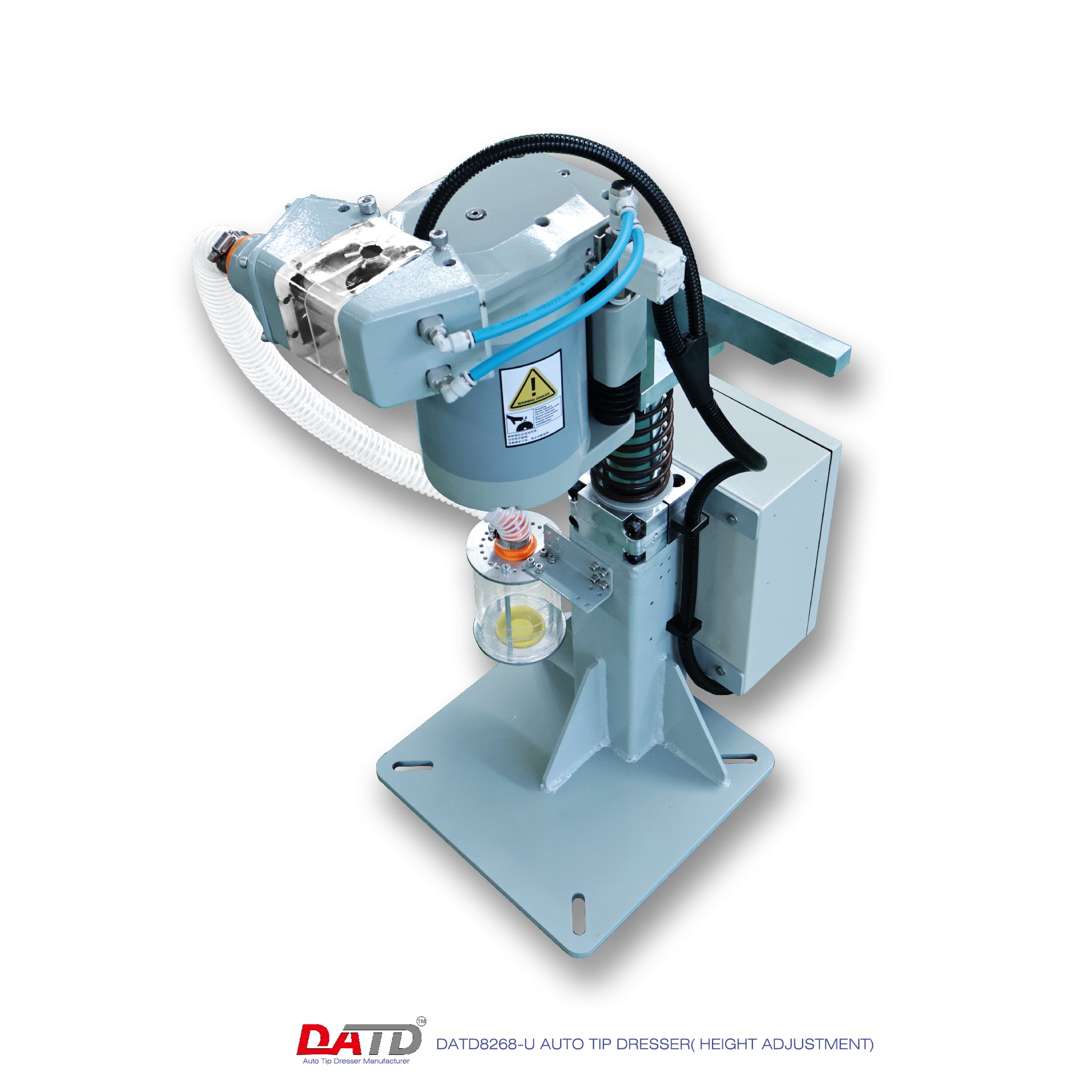

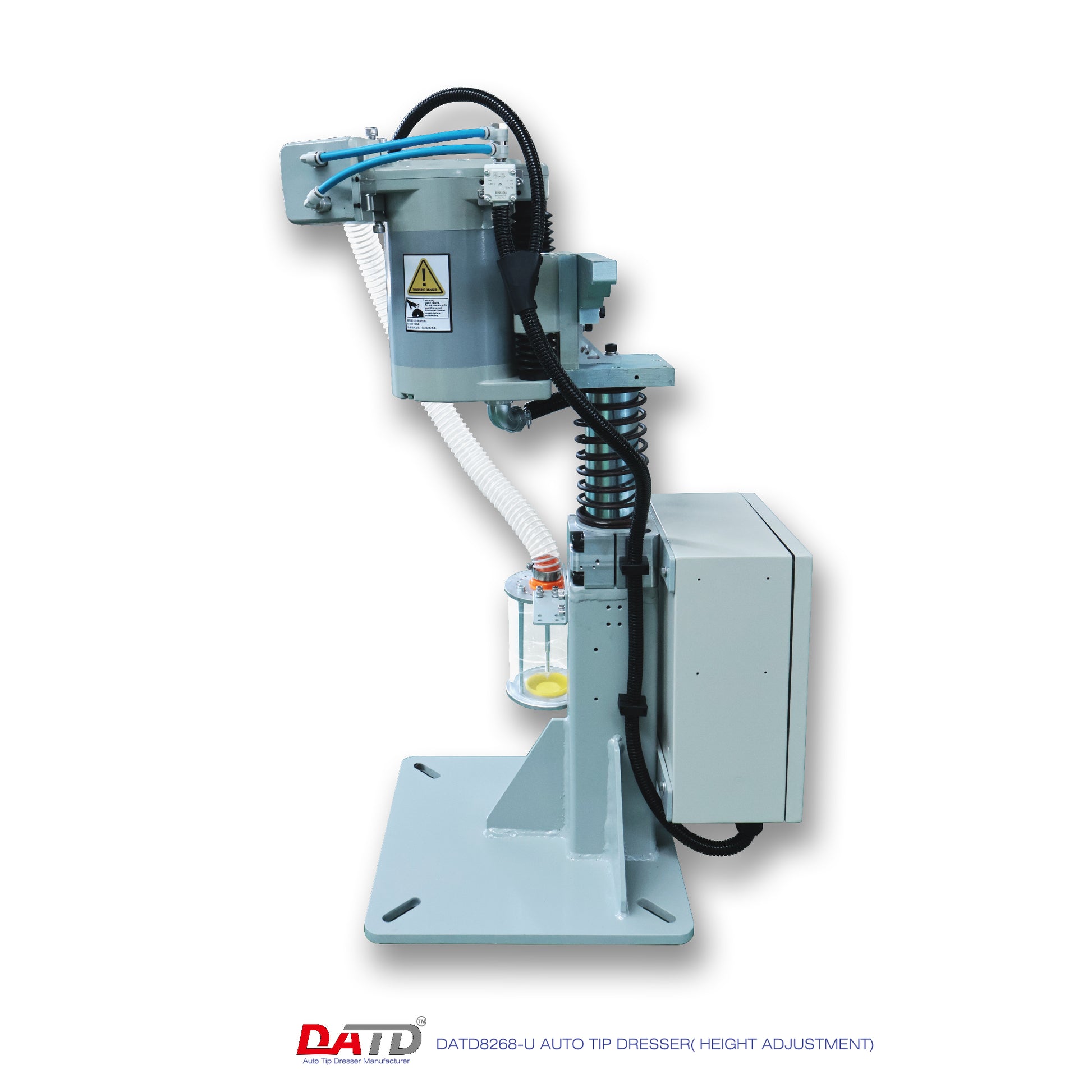

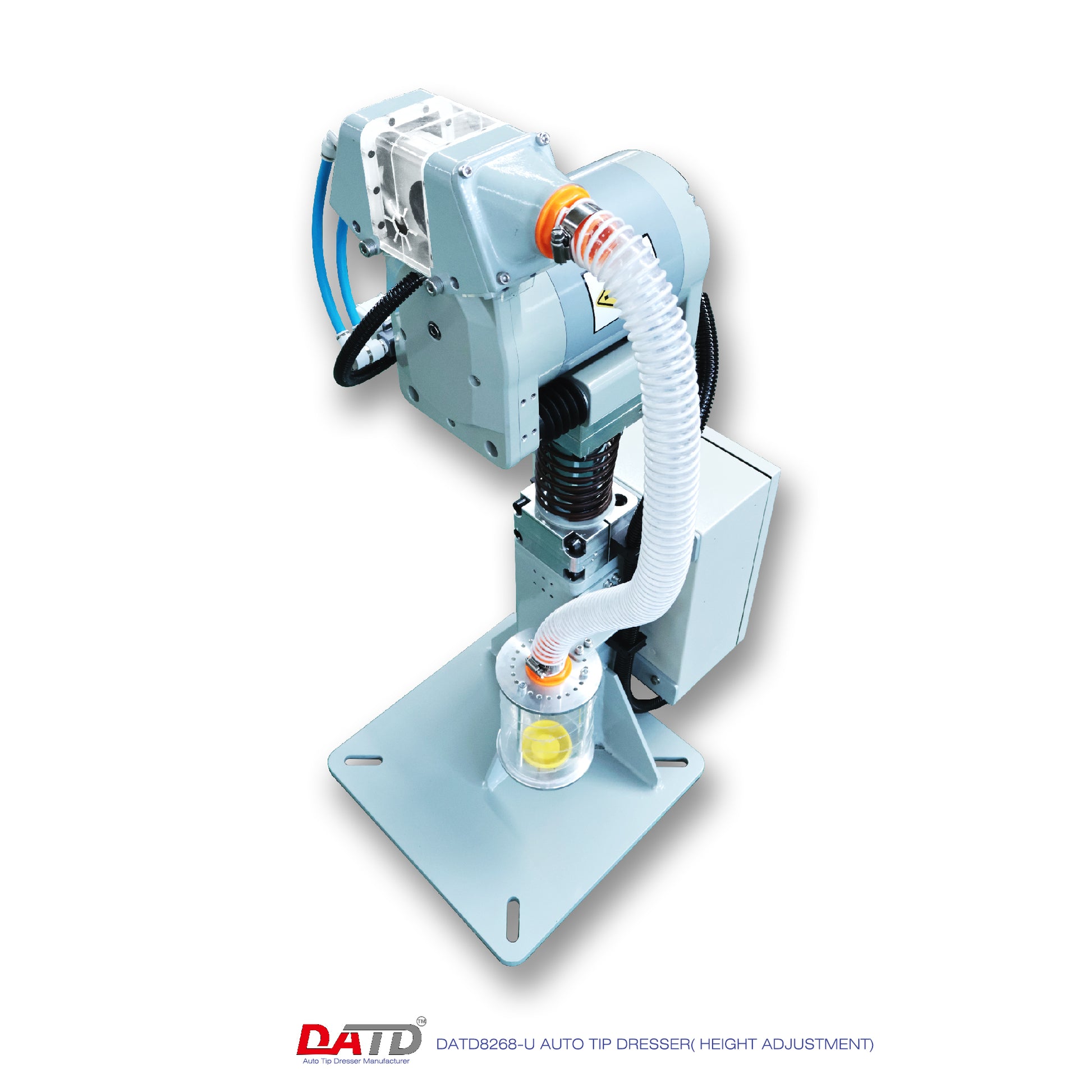

DATD8268-U Auto Tip Dresser-ADJUSTABLE HEIGHT
DATD8268-U Auto Tip Dresser-ADJUSTABLE HEIGHT
DATD8268-S
1. High dressing torque (rated output torque: 46N*m) and high revolving speed (Dressing period: 1s).
2. High-tenacity blade and high wear-resistance blade are optional.
3. it can be switched to either horizontal or vertical installation (Type V, H and T supported).
4. Outsourced parts with exquisite workmanship and strict standard (SIEMENS, Phoenix, SMC, THK and NSK).
5. Customized swing arm type tip dresser.
6. Adjustable Height: 70-110cm
Technical Parameters of DATD8268-S
|
Model |
DATD8268-S |
|
Drive mode |
Gear drive |
|
Power supply |
3-phase AC 380V |
|
Frequency |
50Hz |
|
No-load revolving speed |
246rpm |
|
Rated output torque |
46N*m |
|
Rated output power |
1.2kW |
|
Floating adjusting range |
±15mm |
|
Solenoid valve SOL |
DC24V 4.5W Max. 2.0MPa |
| Height Adjustment |
70-110cm |
