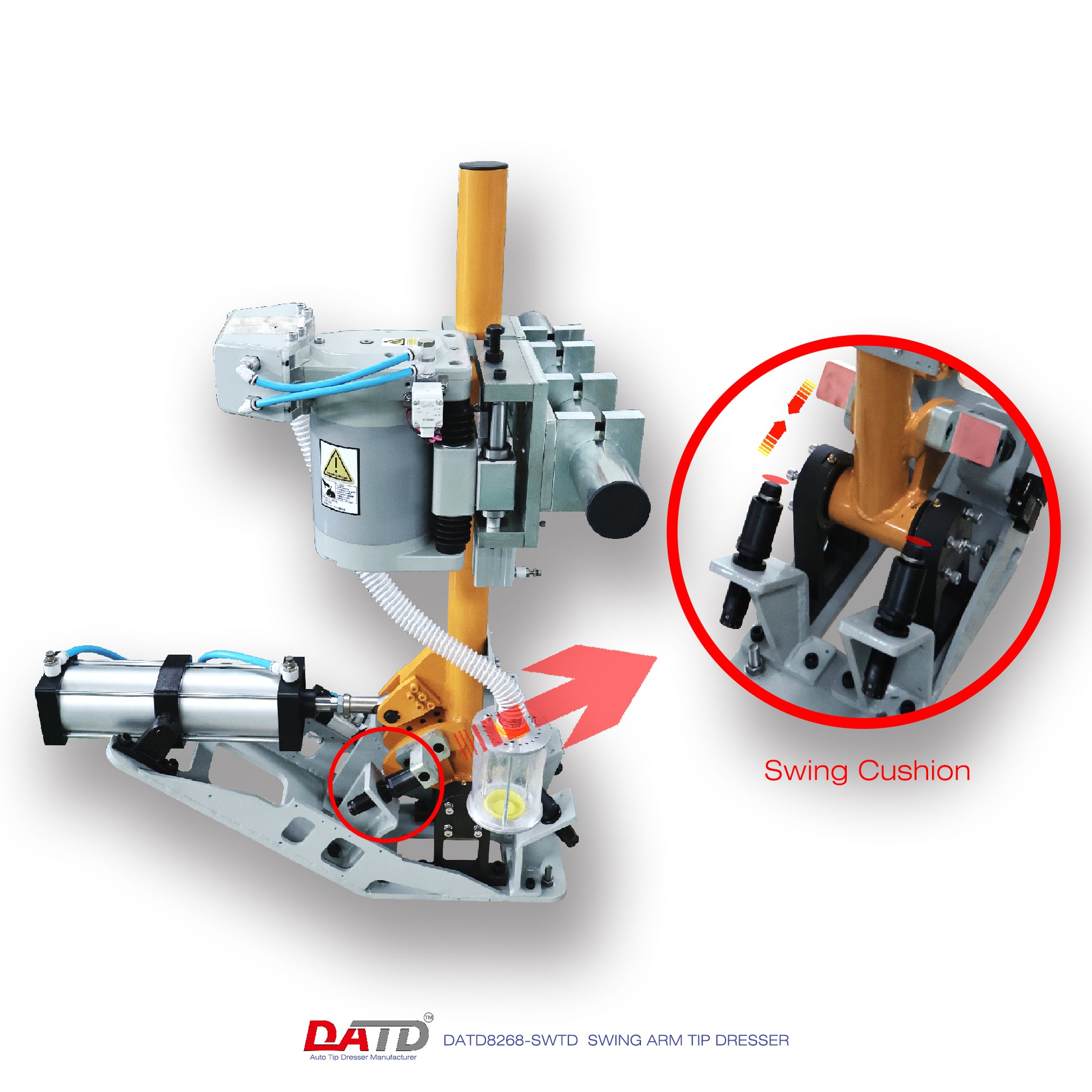

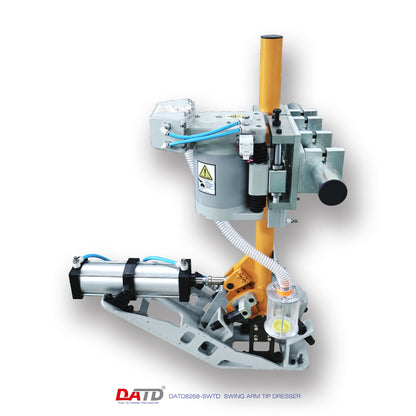

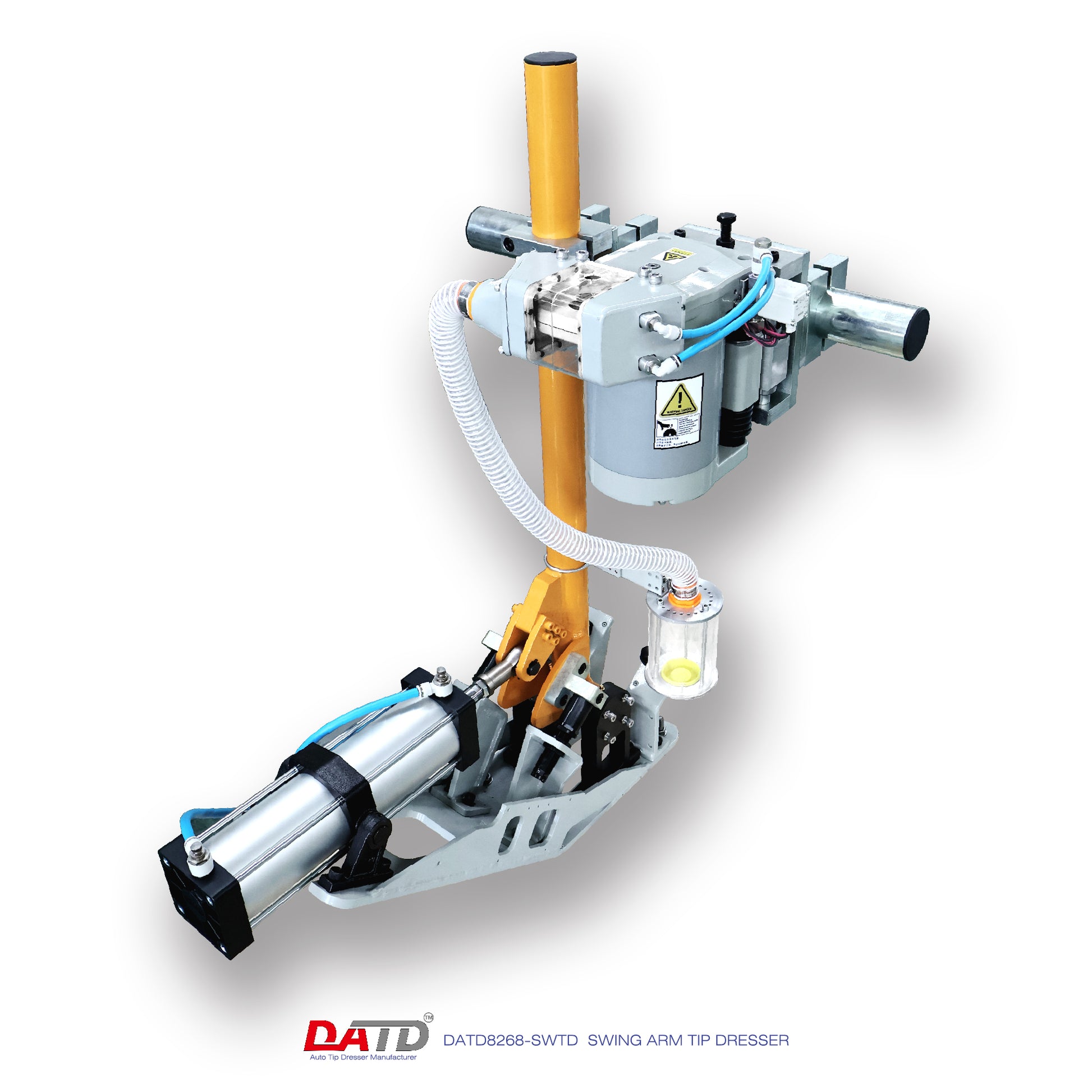

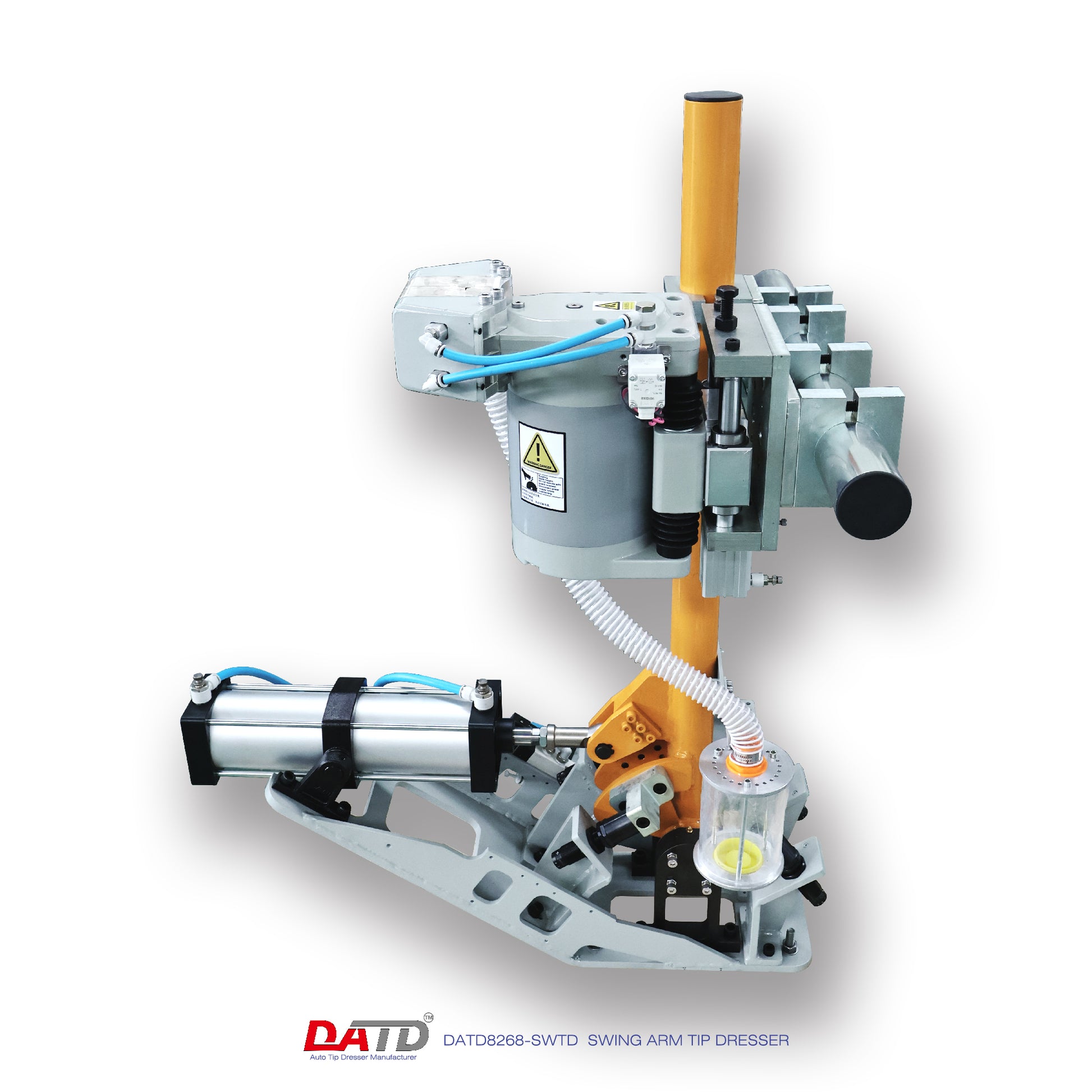

DATD AUTO TIP DRESSER
1. It is suitable for dressing the fixed robot welding tongs
2. Cylinder drive or motor drive is optional.
3. Secondary floating mechanism is optional.
4. The swing arm flip angle and dressing position are adjustable.
5. Angle, position, dressing operation status and other information are fed back to the robot, forming a closed loop to ensure the system reliability.
Technical parameters of DATD8268-SWTD
|
Model
|
DATD8268-SWTD
|
|
Drive mode
|
Pneumatic drive
|
|
Power supply
|
3-phase AC 380V
|
|
Frequency
|
50Hz
|
|
No-load revolving speed
|
230/460rpm Optional
|
|
Rated output torque
|
25/50N*m Optional
|
|
Control and feedback Signal
|
DC24V PNP/NPN Optional
|
|
Floating adjusting range
|
±15mm
|
|
Input air source
|
0.4-0.6Mpa Oil-free compressed air
|
|
Dressing tool
|
High toughness tool/high wear resistance tool optional
|
|
Weight (complete machine)
|
160Kg
|
